Fuel Pumps & Regulators By Russell Performance

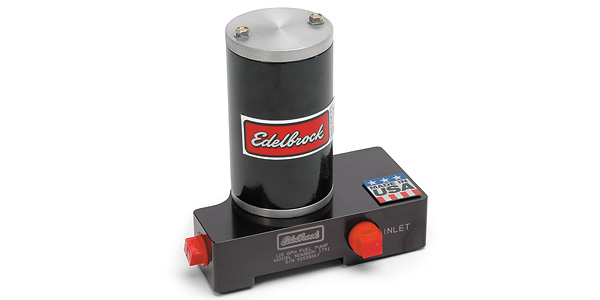

QUIET-FLO™ ELECTRIC FUEL PUMPS (CARB)

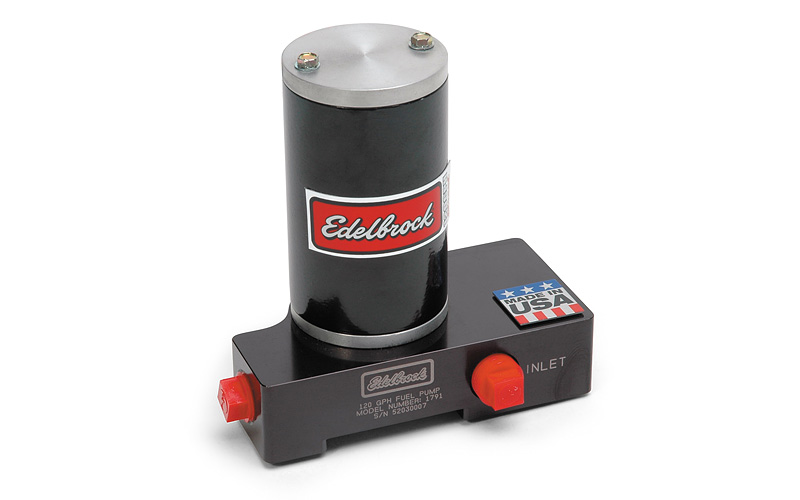

These state-of-the-art electric fuel pumps offer maximum performance in a compact package. With anodized aluminum housings and high-quality internals, they are both strong and durable. Each pump is factory-tested and includes mounting brackets. The carbon vanes and composite rotor give these pumps the added boost for maximum performance. The high quality construction results in a pump that is 4 to 14 dB quieter than competitors' pumps at the same pressure. #1791 is factory preset to 6.5 psi and no regulator is required. With a replaceable screen type inlet filter and the free flow rate of 120 GPH it is sufficient to supply 480 hp. #1792 has a free flow rate of 160 GPH, enough to feed a 1000 hp engine. This pump is factory preset to 12 psi and requires an external regulator such as the Edelbrock regulator #1727. Warranty will be voided when used with diesel fuel.
Quiet-Flo™ Electric Fuel Pumps for Carbureted Applications by Edelbrock
GPH PSI Inlet Outlet Ext. Regulator Req. Supported HP Red Blue Black
120 6.5 3/8" NPT 3/8" NPT No 480+ 182051 182052 1791

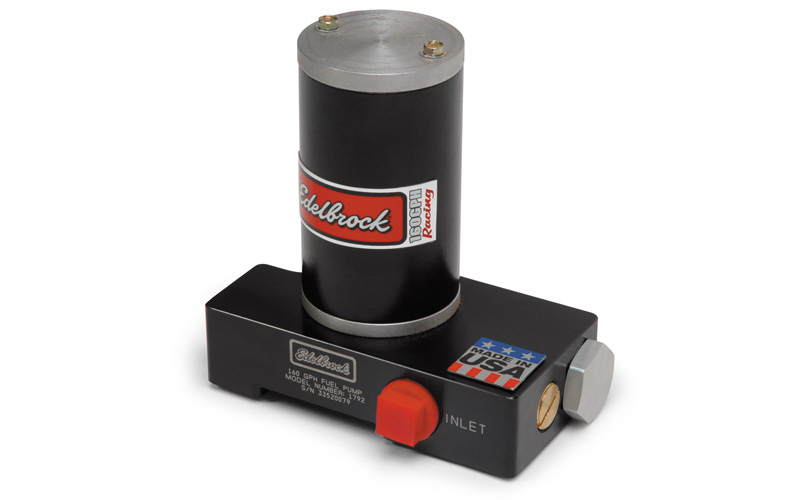

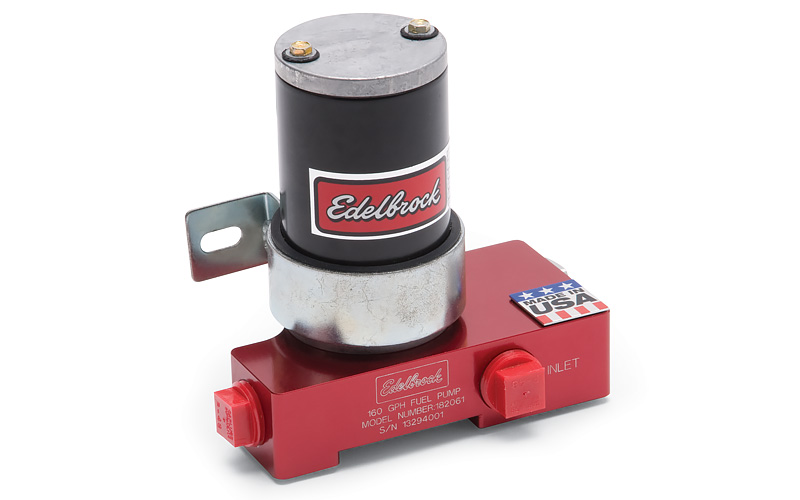

160 12 1/2" NPT 1/2" NPT Yes 1000+ 182061 182062 1792
Edelbrock Installation Note INSTALLATION NOTE: These pumps should be mounted as close to the fuel tank as possible, at or below the fuel level. For proper installation and voltage requirements, use fuel pump relay kit #1795. All fuel pumps are for gasoline only. Edelbrock offers rebuilding services for Quiet-Flo fuel pumps - call for more information.

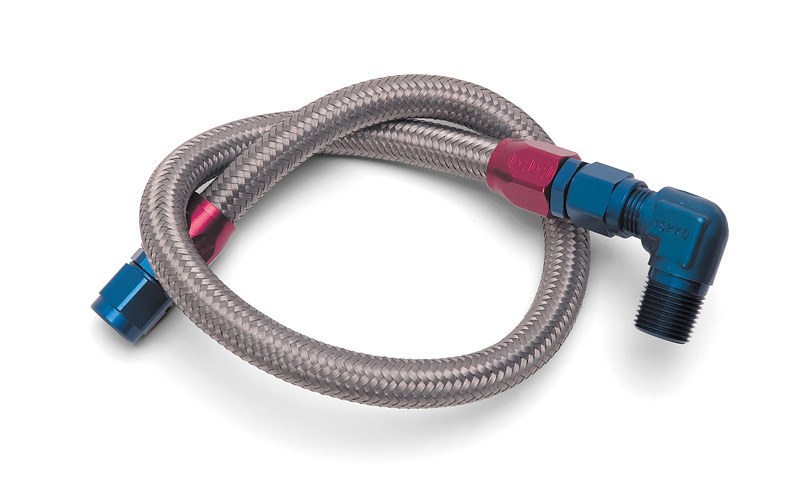

FUEL LINE KITS FOR EDELBROCK CARBS
Braided Stainless Steel or Edelbrock/Russell ProClassic For 110, 130 & 175 Fuel Pumps. Connects Edelbrock mechanical fuel pumps with 3/8" NPT outlet to Edelbrock Single-Feed or Dual-Feed Fuel Line and Filter Kits #8128, #8131, #8133, and #8134. Pre-assembled hose with hose ends.
Fuel Line Kits for Edelbrock Carburetors by Edelbrock
Application Stainless Black

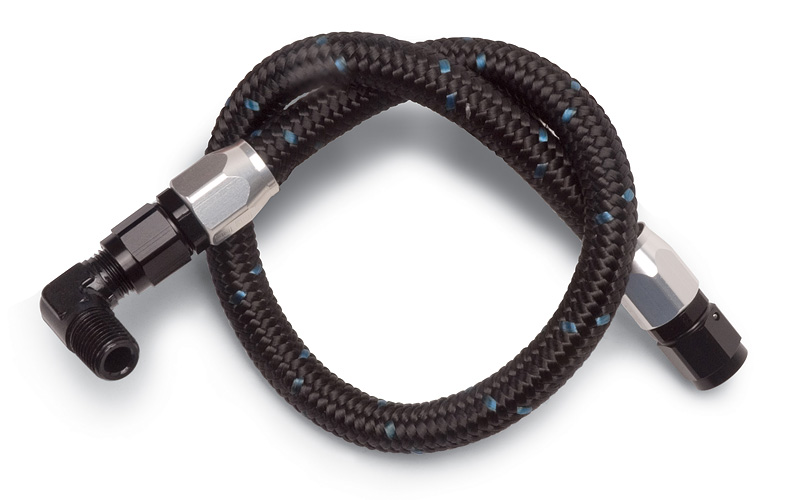

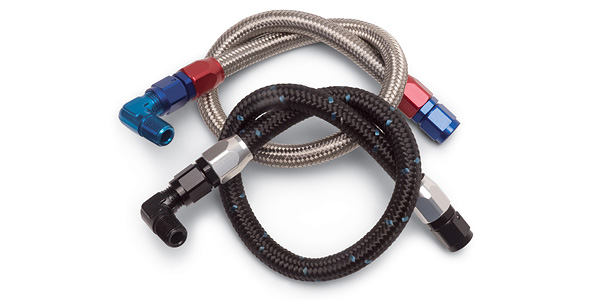

Fuel Line Kit (For S/B Chevy, S/B Chrysler, and B/B Chrysler) 8123 81233

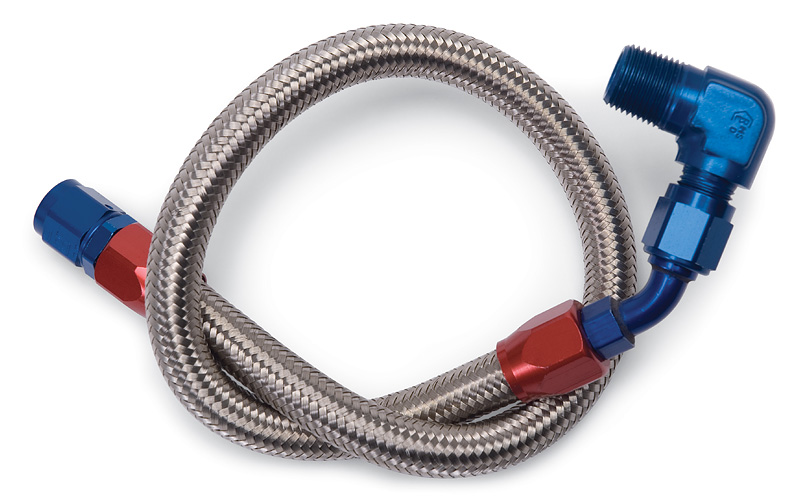

Fuel Line Kit (For AMC, B/B Chevy, S/B Ford, 429/460 Ford & Pontiac) 8124 81243
Fuel Line Kit (For S/B Ford) 8125 -
QUIET-FLO™ ELECTRIC FUEL PUMPS (EFI & CARB)
These fuel pumps feature an anodized aluminum housing and high-quality internals, resulting in both a strong and durable design. The in-line design keeps the pump motor and components cool even under harsh conditions. Compatible with all grades of gasoline and methanol type fuels only. Each pump is factory-tested and includes mounting brackets.
Quiet-Flo™ Electric Fuel Pumps for EFI & Carb Applications by Edelbrock
GPH Inlet Port Outlet Port Red Blue Black

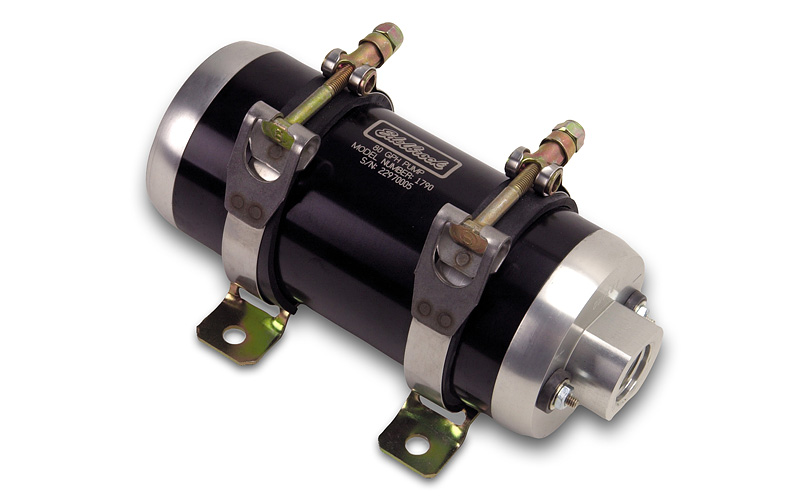

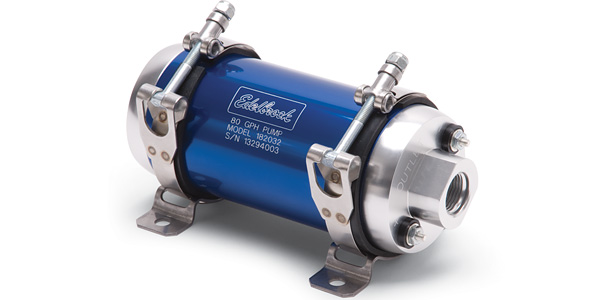

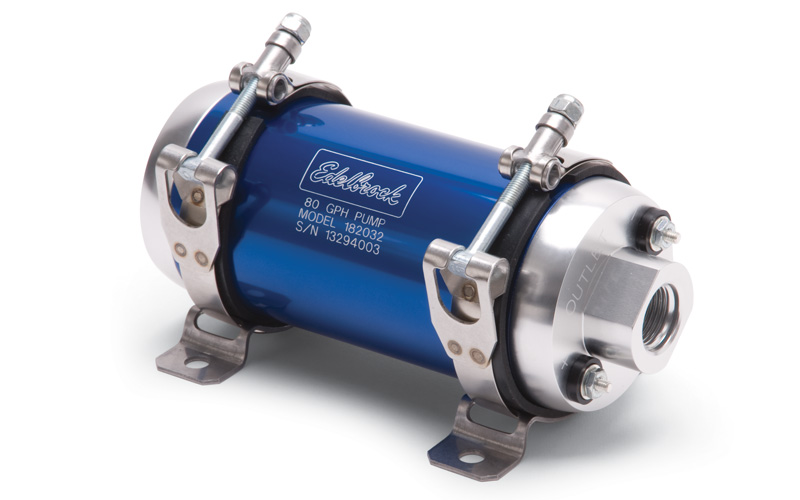

80 @ 45 psi -10 (SAE) -10 (SAE) 182031 182032 1790

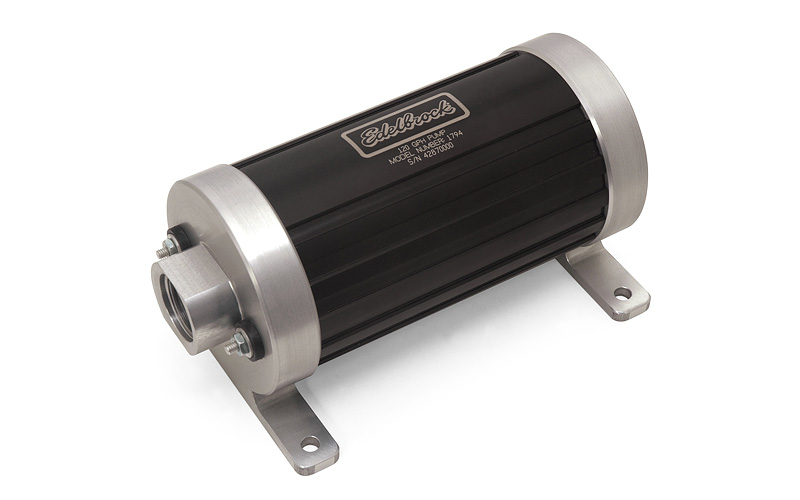

120 @ 45 psi -12 (SAE) -12 (SAE) 182071 182072 1794

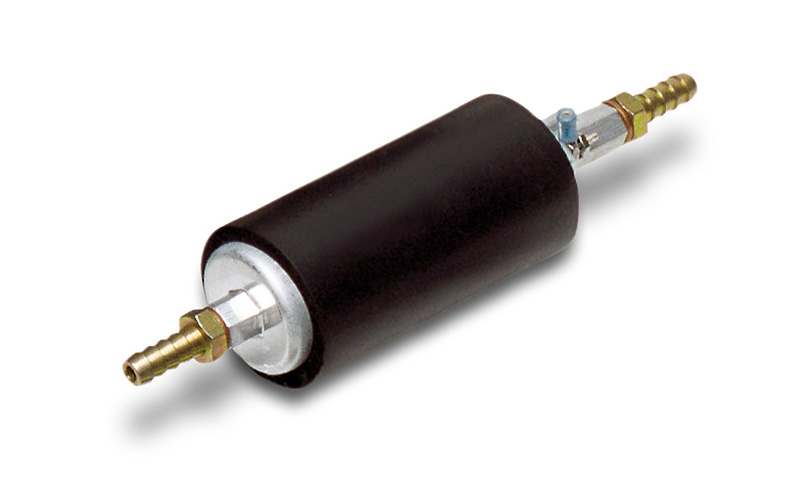

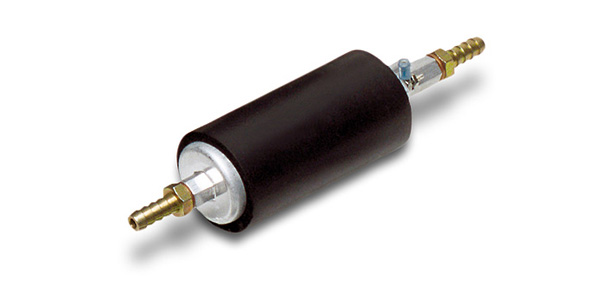

INLINE STREET / STRIP ELECTRIC FUEL PUMPS
Street/Strip fuel pumps can be utilized as an inline booster pump or as a stand-alone unit. These pumps are continuous duty rated and are ideal for EFI applications that require additional pumping capabilities from upgrade modifications such as high compression pistons, high flow intake manifold, big bore throttle bodies, cams, turbo kits, supercharger and nitrous applications up to 600 HP. Includes mounting brackets, 3/8" barb fittings. Match with EFI regulator #1728 for adjustability from 35 to 90 psi.
High Performance Street/Strip Electric Fuel Pumps by Edelbrock
Application Part #
67 GPH (255 liter/hr @ 45psi), 3/8" Hose Barb Fittings 3594

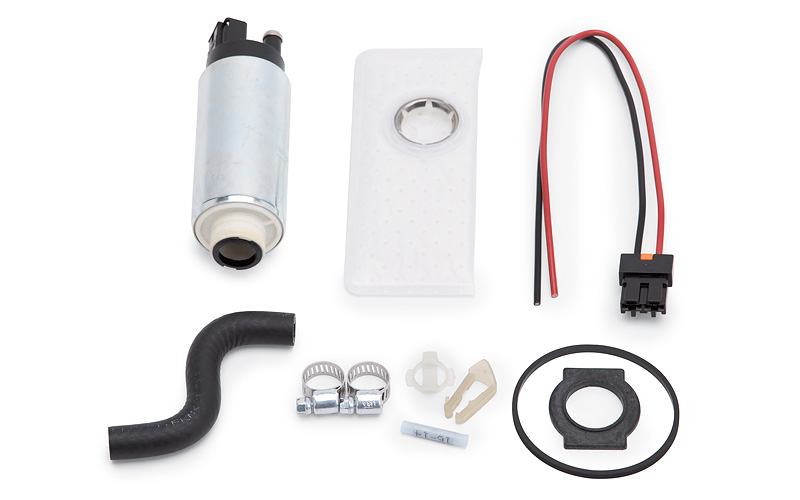

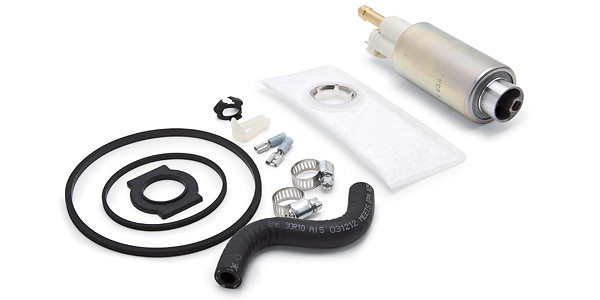

HIGH PERFORMANCE IN-TANK FUEL PUMP
These OE in-tank upgrade pumps are ideal for supporting performance improvements such as a high performance intake manifold, cams, turbo, direct port nitrous systems, big-bore throttle body, etc. They replace your original pump exactly and include all necessary hardware for an easy installation.
High Performance In-Tank Fuel Pumps by Edelbrock
Application Part #
For 1985-97 Ford Mustang (exc. 1996-97 Cobra)

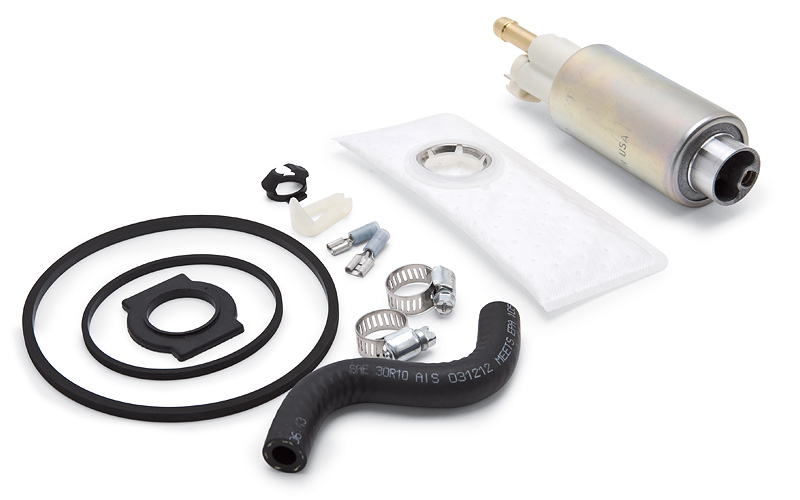

155 liter/hr. (41 gph) 17930

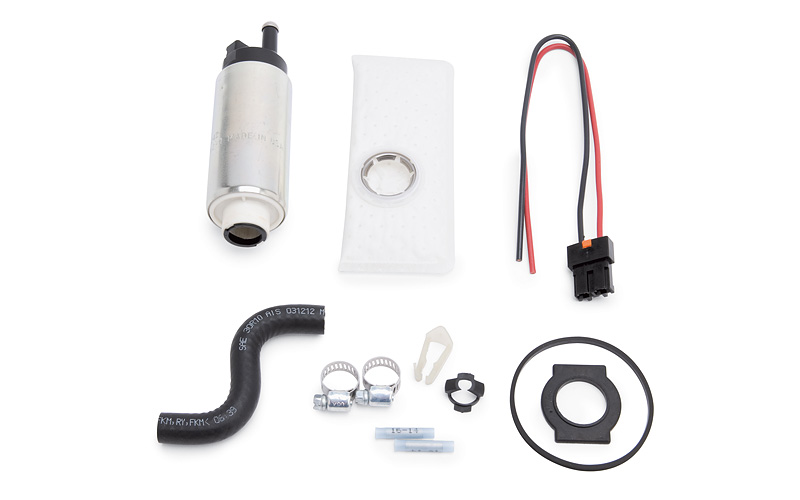

190 liter/hr. (50 gph) 17931
255 liter/hr. (67 gph) 17932

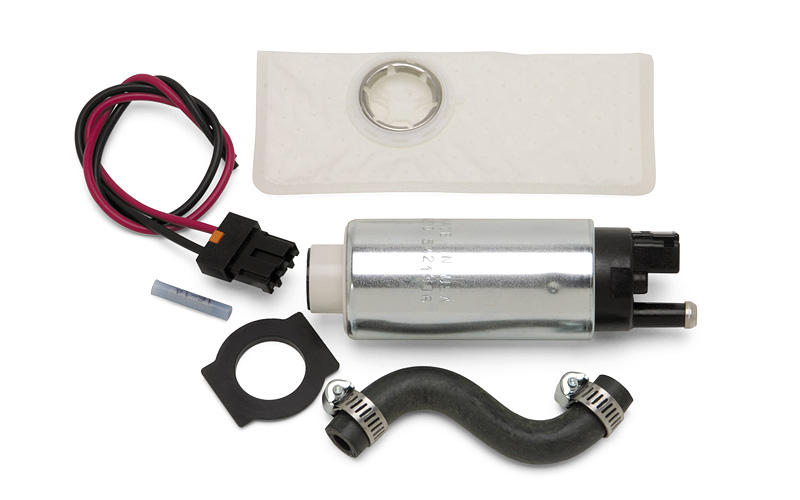

255 liter/hr. (67 gph), High Pressure for Turbo or Nitrous 17935

For 1985-92 Fuel-Injected GM Vehicles, Non-TBI

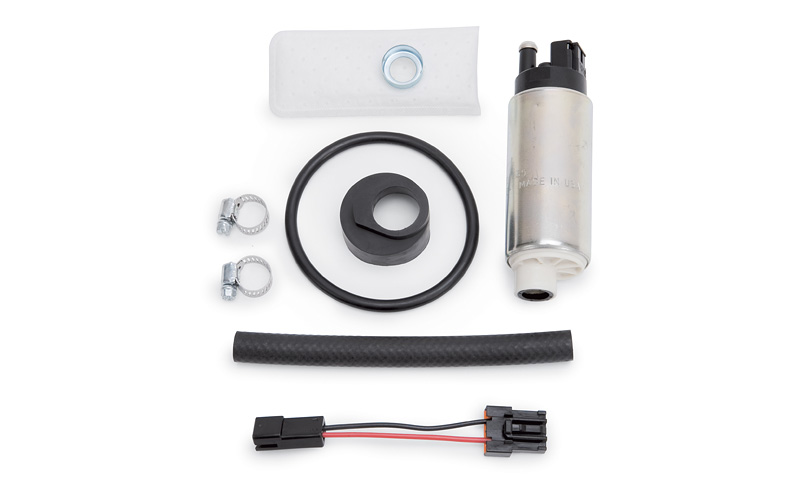

255 liter/hr. (67 gph) 17933

For 1984-90 Front Wheel Drive Chrysler Vehicles

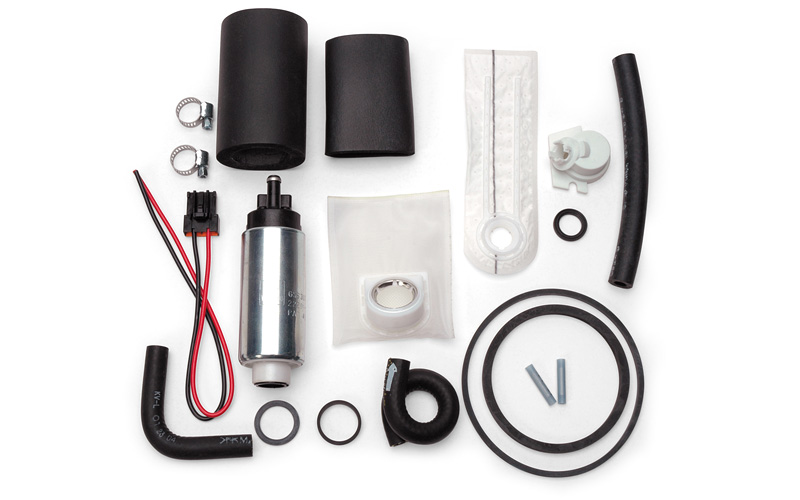

255 liter/hr. (67 gph) 17934

For 1984-90 Front Wheel Drive Chrysler Vehicles

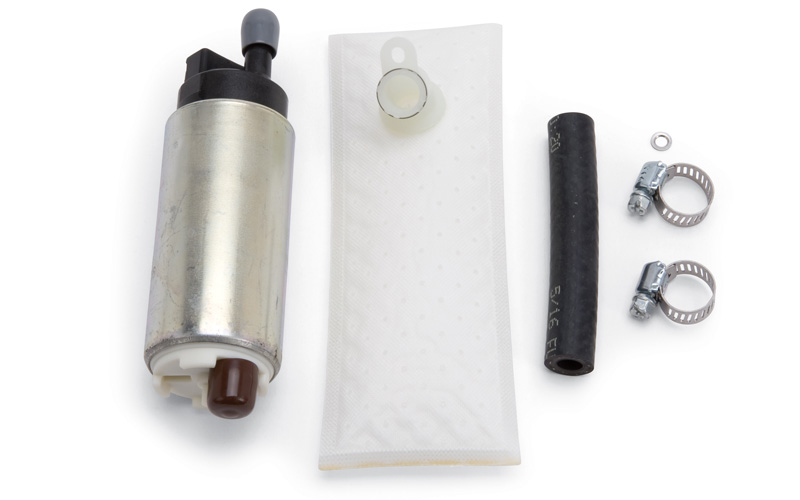

190 liter/hr. (50 gph) 17938

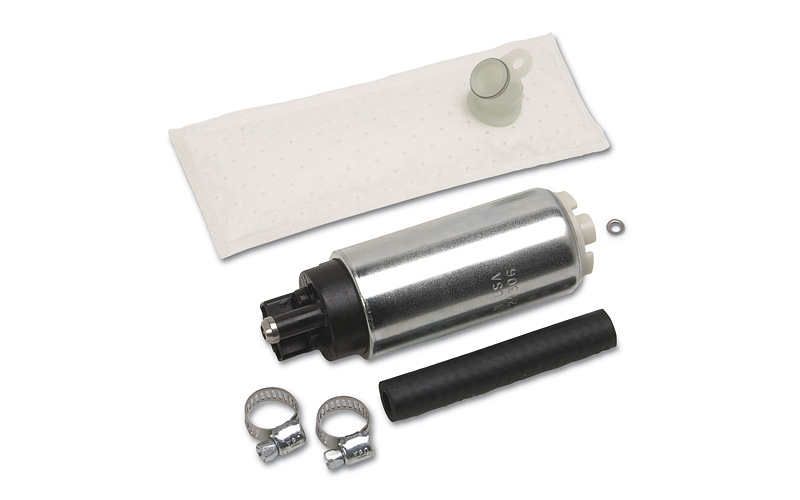

255 liter/hr. (67 gph) 17936

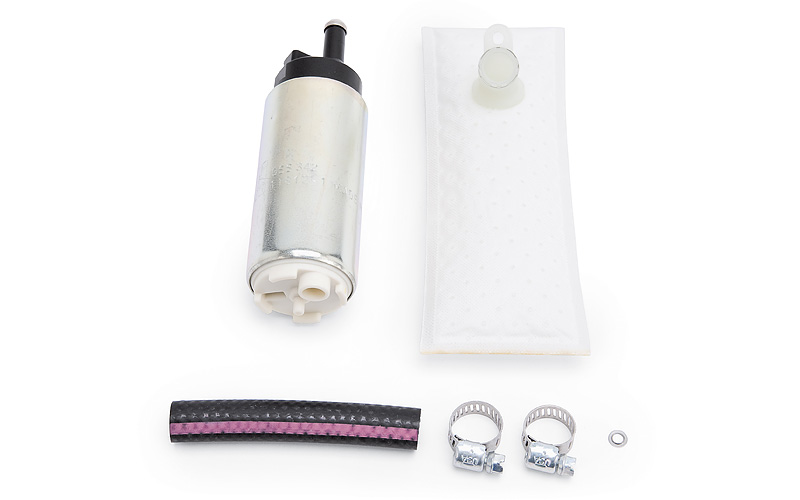

255 liter/hr. (67 gph), 60+ psi for Turbo, Supercharger or Nitrous 17937

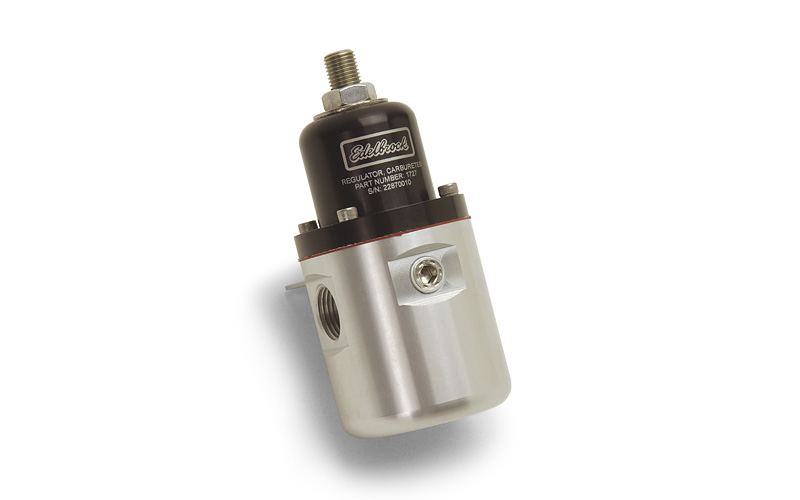

FUEL PRESSURE REGULATORS (CARB)
These fuel pressure regulators are machined from aircraft quality aluminum for those who demand the best. These carbureted fuel pressure regulators have an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Select regulators available with 1/8" NPT gauge port and a boost reference fitting for blow through or pressurized carburetor applications (even beyond 30 psi of boost). Pressure regulation slope is 0.75 psi/gal of flow rate change. Will hold fuel system pressure for at least 20 minutes after pump shutdown. Developed for optimum compatibility with Edelbrock electric fuel pumps.
High Performance Fuel Pressure Regulators for Carbureted Applications by Edelbrock
GPH Inlet Outlet Return Vac Port Gauge Port Red / Clear Blue / Clear Black Black / Clear
Non-Bypass Style

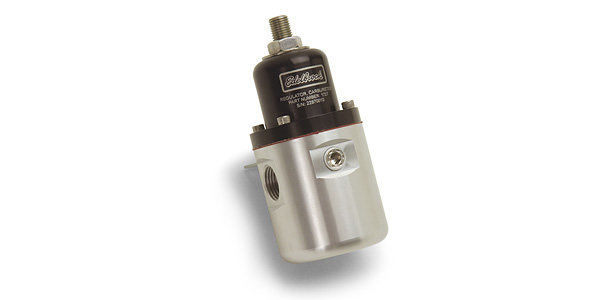

160 3/8" NPT 3/8" NPT - No Yes 174121 174122 174123 1727
Bypass Style

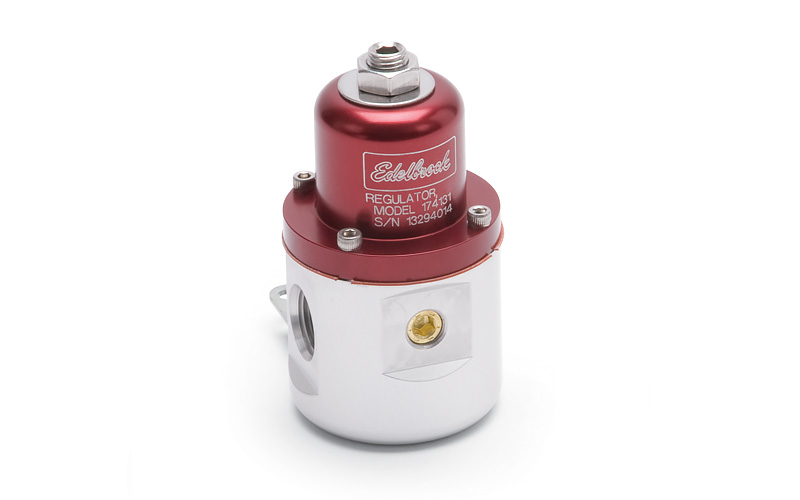

160 3/8" NPT 3/8" NPT 3/8" NPT No Yes 174131 174132 174133 1778
180 -10 -10 -6 Yes Yes 174051 174052 174053 -

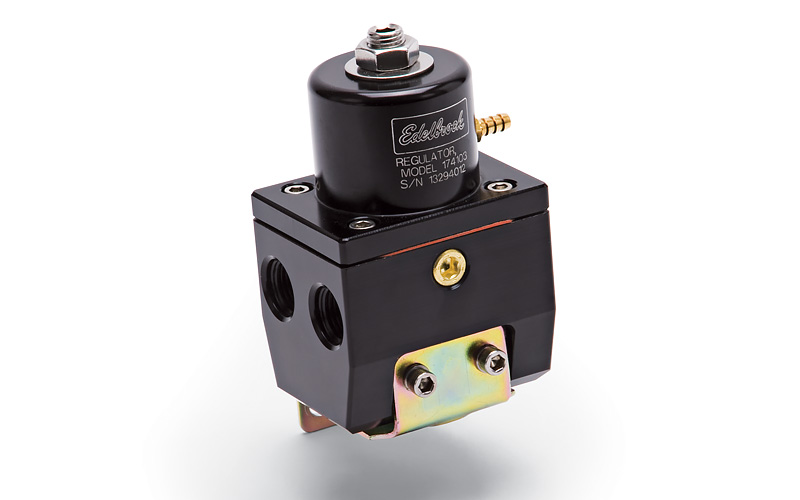

180 -10 -6 (x2) -8 Yes Yes - - 174103 -

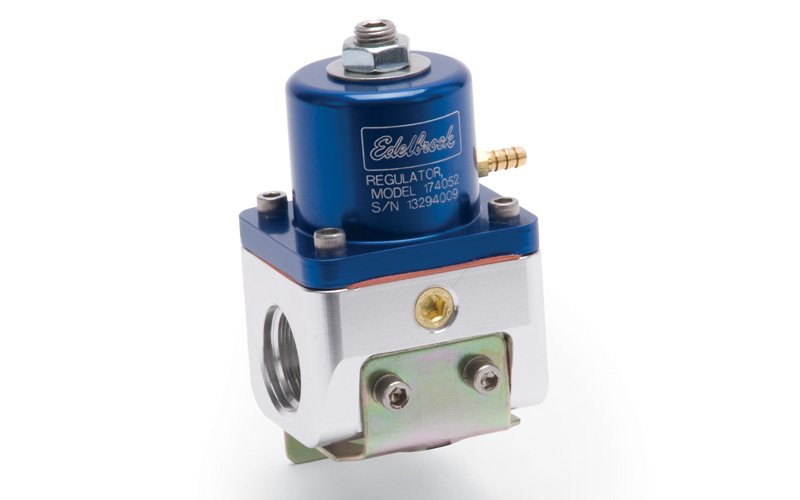

FUEL PRESSURE REGULATORS (EFI)
These fuel pressure regulators are machined from aircraft quality aluminum for those who demand the best. These EFI fuel pressure regulators have an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. These regulators will hold fuel system pressure for at least 20 minutes after pump shutdown. Mounting bracket and hardware are included. Each regulator features a vacuum/boost compensating port for a supercharger, turbo or intake manifold vacuum connection.
High Performance Fuel Pressure Regulators for EFI Applications by Edelbrock
GPH Inlet Outlet Return Vac Port Gauge Port Red / Clear Blue / Clear Black Black / Clear

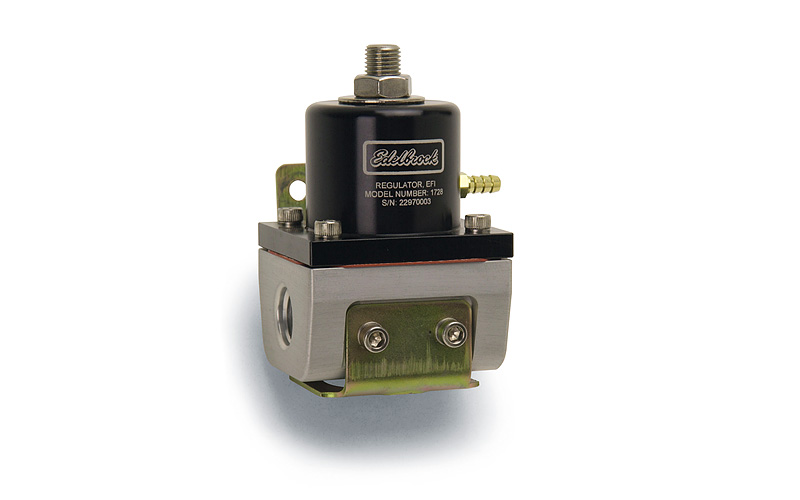

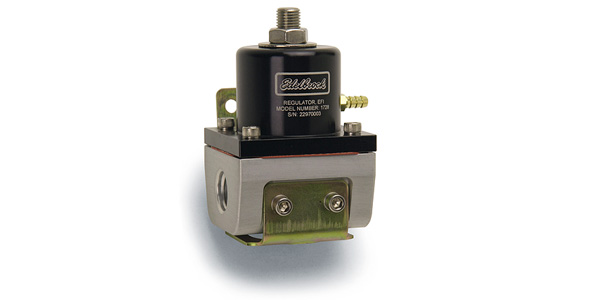

180 -6 -6 -6 Yes No 174041 174042 174043 1728

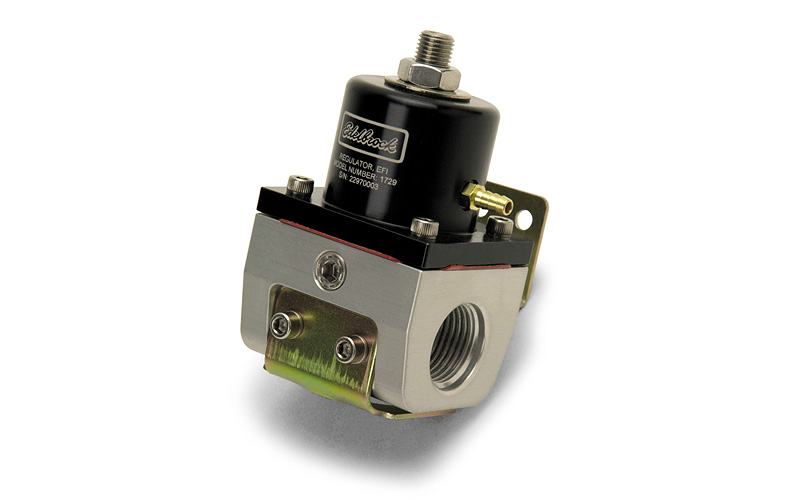

180 -10 -10 -6 Yes Yes 174021 174022 174023 1729
270 -10 -10 -8 Yes Yes - - 174113 -
REGULATOR TO FUEL RAIL ADAPTER
These adapter fittings ease the installation and eliminate the need to stack fittings when connecting your EFi regulator to your fuel rail. Our unique swivel design allows 360° rotation after installation and uses our radius port O-Ring connection at the regulator for ultimate flow. For use with regulators with -10 ports and fuel rails with 3/8" NPT. ideal for use with Edelbrock 1729 regulator and fuel rail kits with 3/8" NPT Ports.
Regulator to Fuel Rail Adapter by Edelbrock
Application Part #

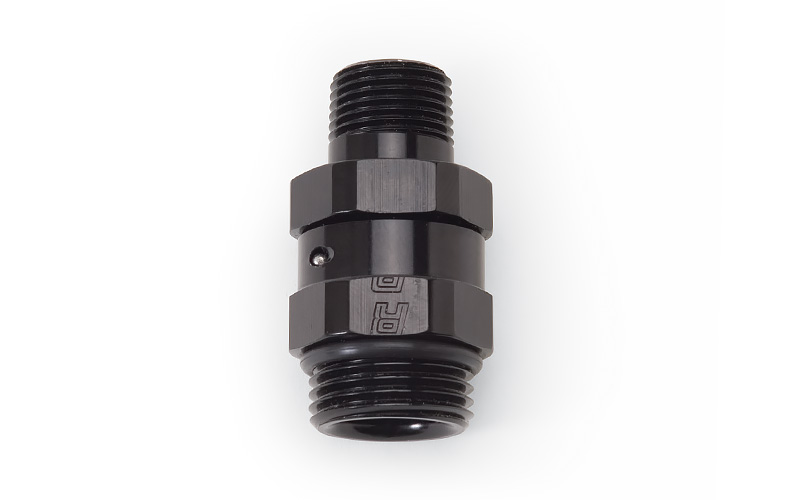

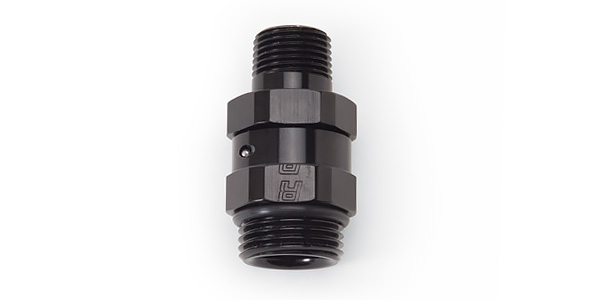

3/8" NPT swivel to -10 AN radius inlet port 640543
-10 AN radius port male x -8 radius port male swivel O.R.B. 644033

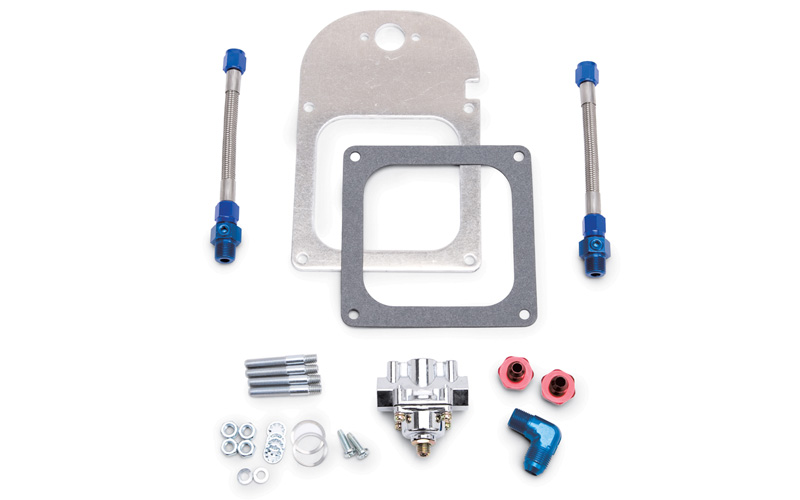

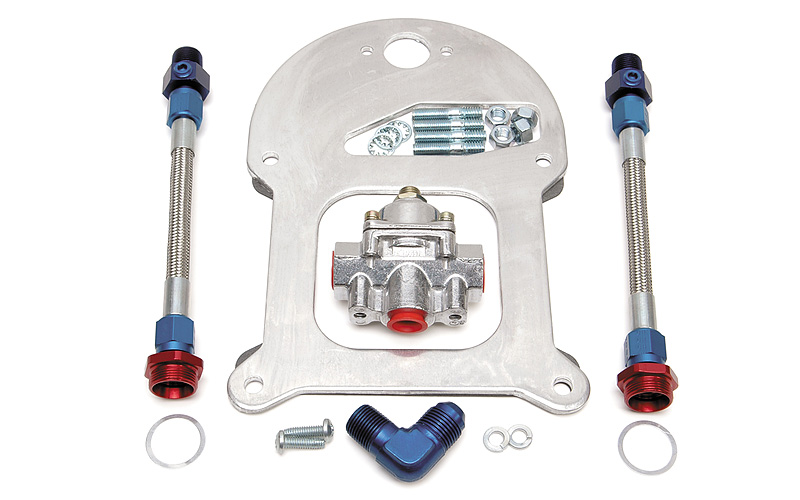

FUEL PRESSURE REGULATOR KITS
These Fuel Pressure Regulators are for Holley Standard-Flange Dual-Feed or 4500 Series Carburetors. Adjust fuel pressure from 4-1/2 to 9 psi. Match with Edelbrock racing fuel pumps. Kits include fittings, mounting plate, fuel line and regulator. Fuel line from fuel pump to regulator is not included; use #8122 or #8127 listed below.
Fuel Pressure Regulator Kits by Edelbrock
Application Part #
Single Regulator, Dual Outlet, Standard-Flange 8192
Single Regulator, Dual Outlet, 4500 Flange 8193

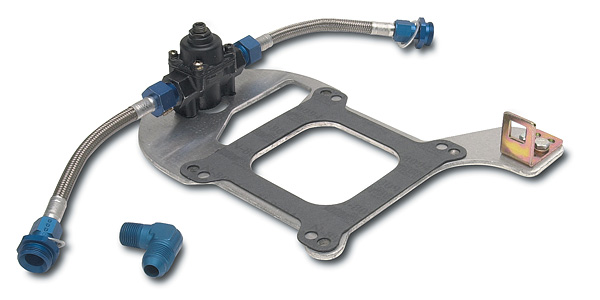

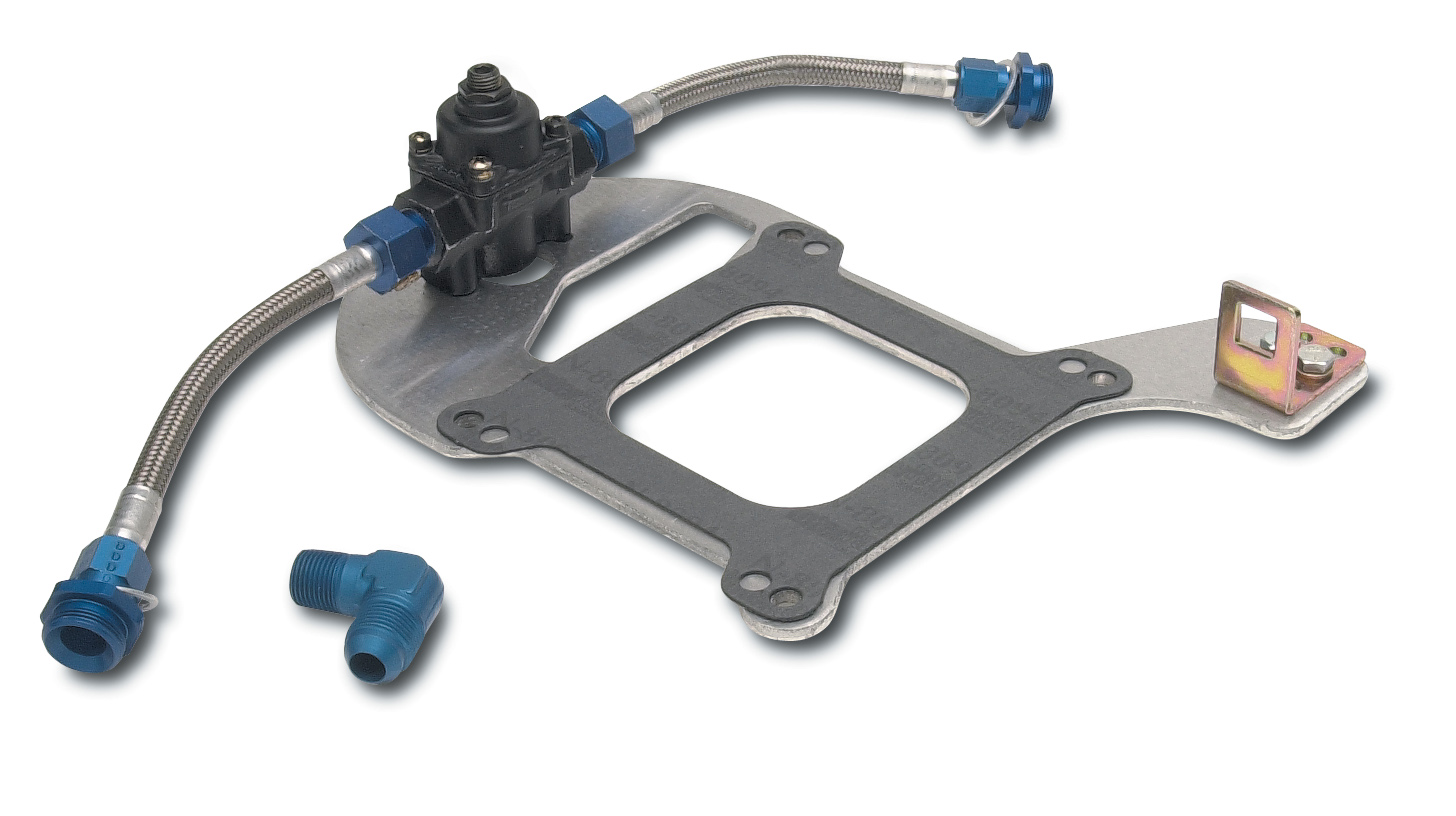

Single Regulator, Dual Outlet, Standard Flange w/GM Throttle 8195

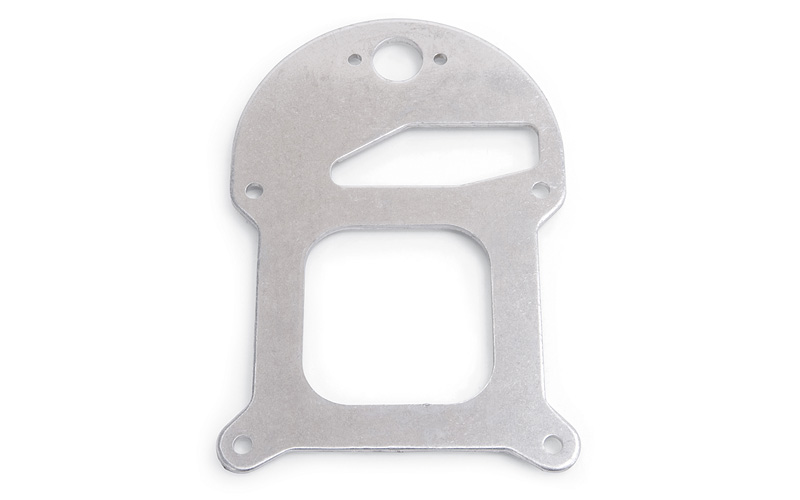

Single Regulator Plate Only, Standard Flange 8189

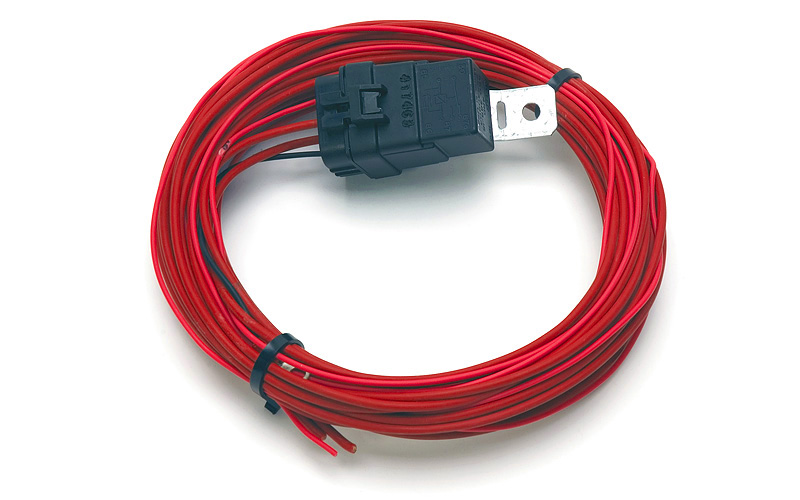

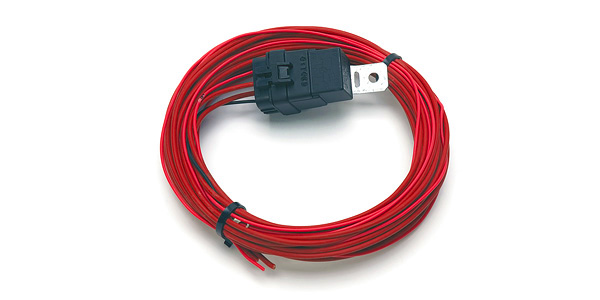

UNIVERSAL FUEL PUMP RELAY KIT
Universal fuel pump relay kit for use with Edelbrock #1791 and #1792 fuel pumps. Installation of this relay kit will ensure proper wiring which will reduce the risk of damaging the fuel pump and result in consistent fuel pressure.
Fuel Pump Relay Kit by Edelbrock
Application Part #
Fuel Pump Relay Kit 1795

WARNING: ALL products on this page can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
