Fuel Filters By Russell Performance

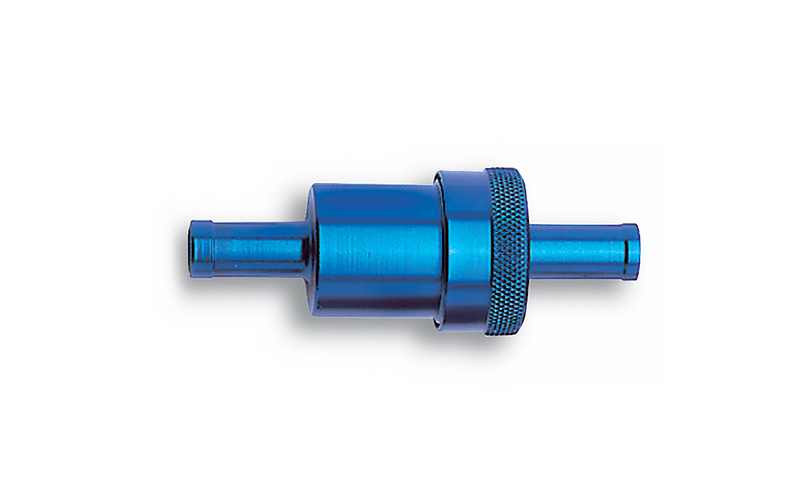

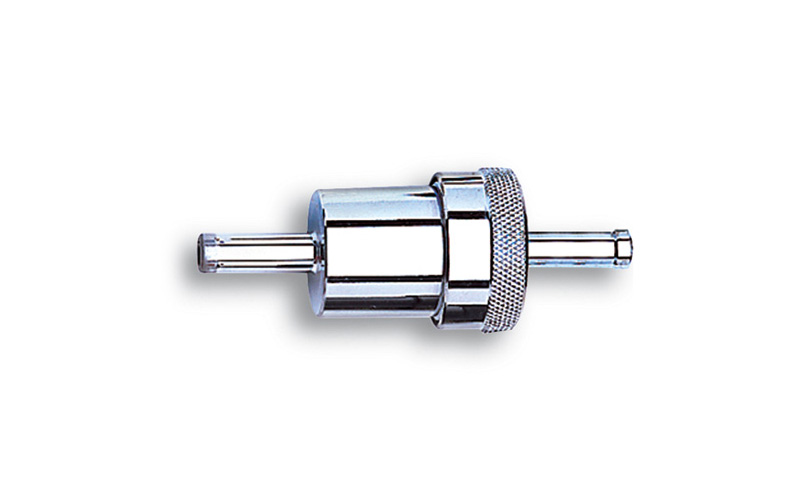

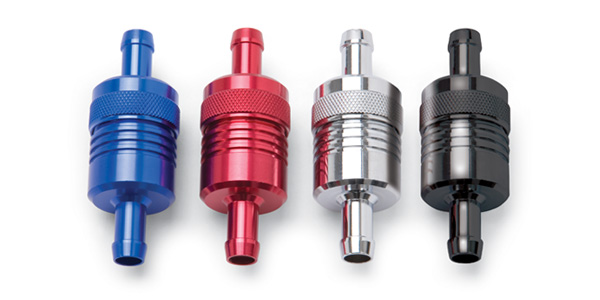

ALUMINUM STREET FUEL FILTERS
Fuel filters are made of billet aluminum for strength and shock resistance. The sintered-bronze 40 micron element can be cleaned or replaced. Fuel filters are designed for carbureted engines making less than 300 hp. Filters are bi-directional and available to fit 5/16" or 3/8" fuel hoses
Aluminum Street Fuel Filters by Edelbrock
Length Diameter Inlet / outlet Blue Red Chrome Black

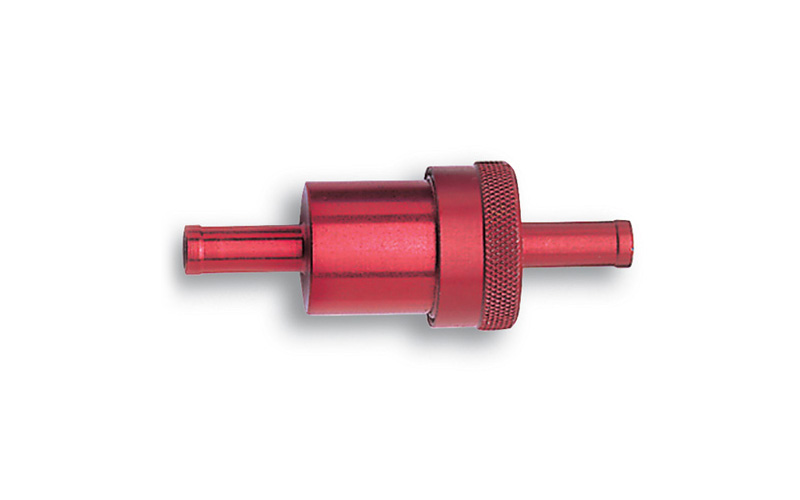

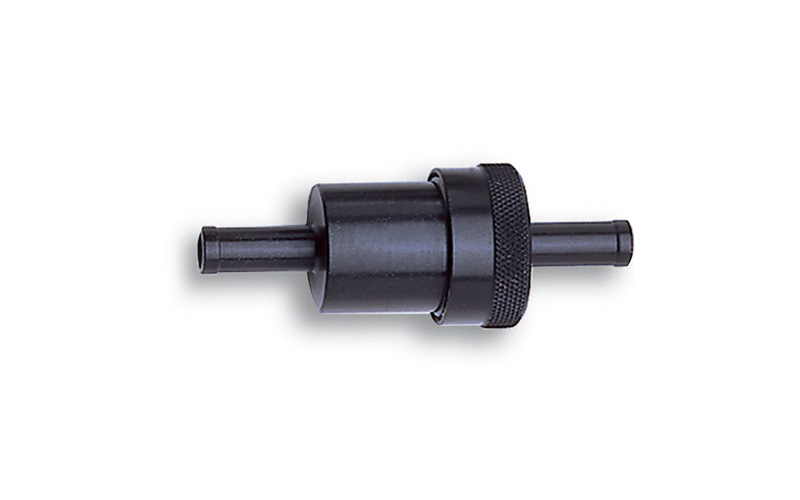

3" 1-1/8" 5/16" 645080 645070 645060 645090
3" 1-1/8" 3/8" 8156 8139 8136 8157
Description Part #

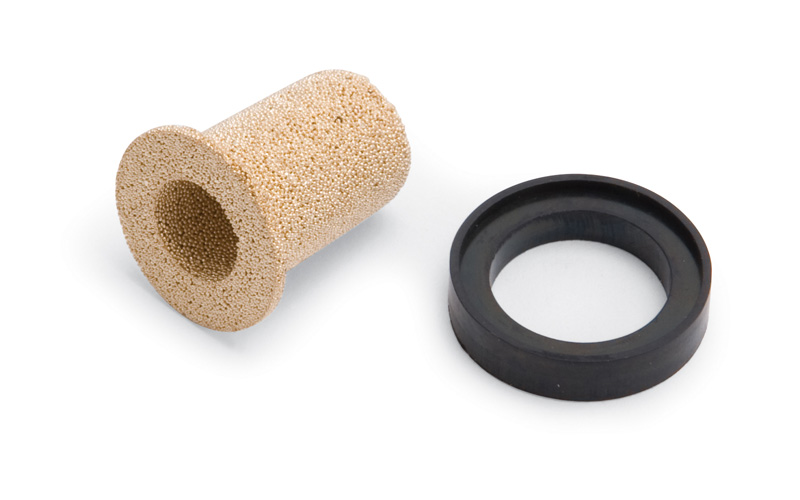

Replacement Element 8158

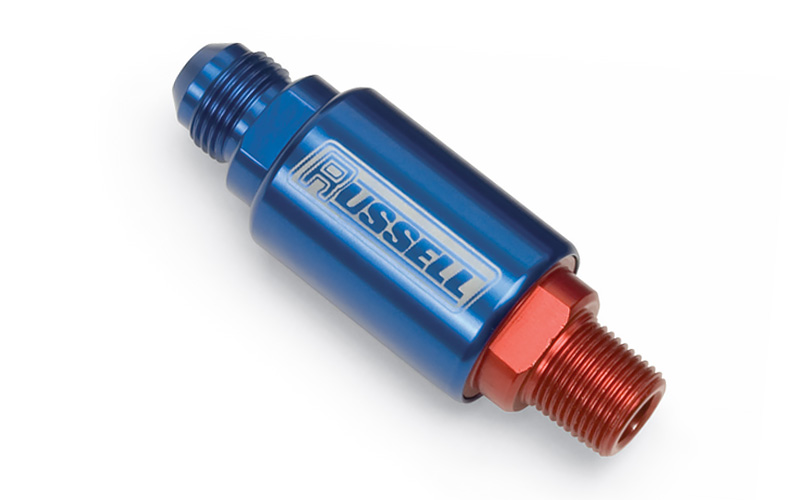

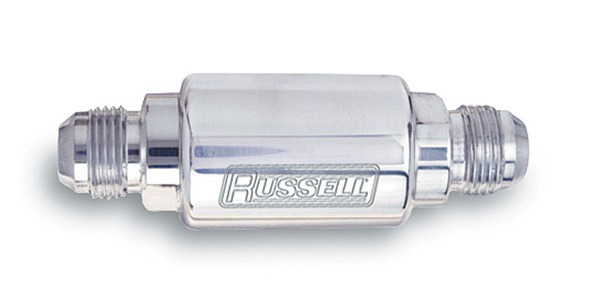

COMPETITION FUEL FILTERS
Competition fuel filters are manufactured from billet aluminum and are designed for high volume systems. Utilizing a 40 micron disc element these filters are offered in -6 AN, -8 AN and 3/8" NPT male outlets. Competition filters are offered in 3 different color choices and are compatible with alcohol.
Competition Fuel Filters by Edelbrock
Length Inlet / outlet Red / Blue Polished Black

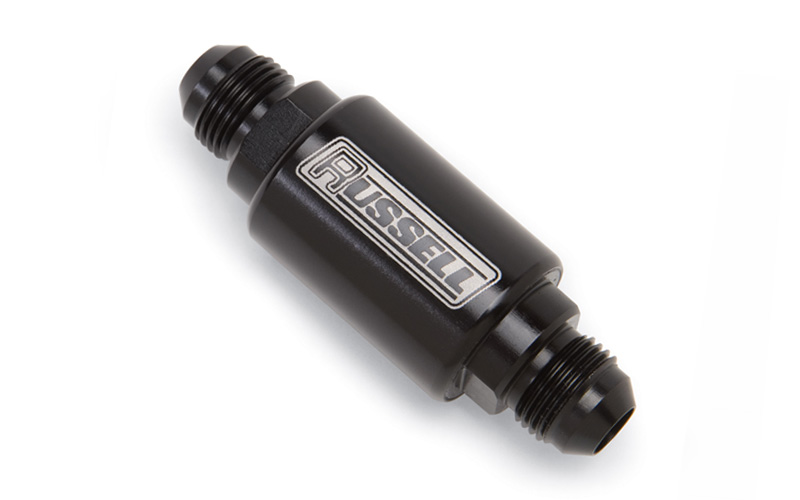

3" -6 AN Male 650130 650140 650133
3-1/4" -8 AN Male 650100 650110 650103
3" -6 AN x 3/8" Male NPT 650190 650200 -

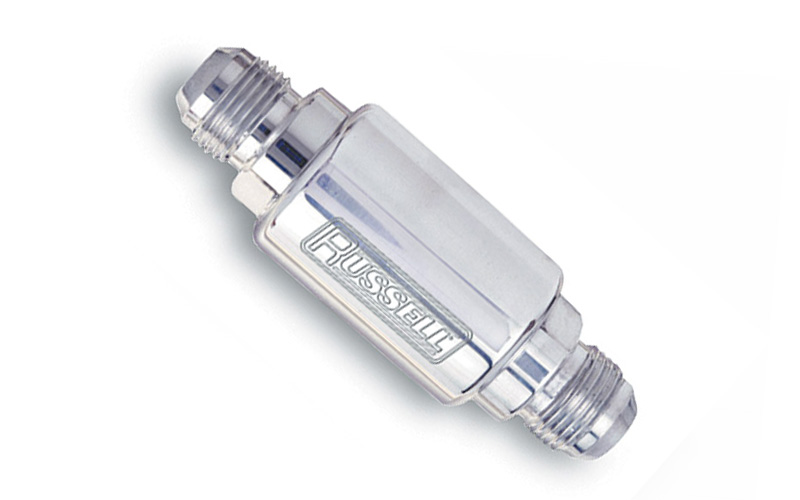

3-1/4" -8 AN x 3/8" Male NPT 650170 650180 -
Description Part #

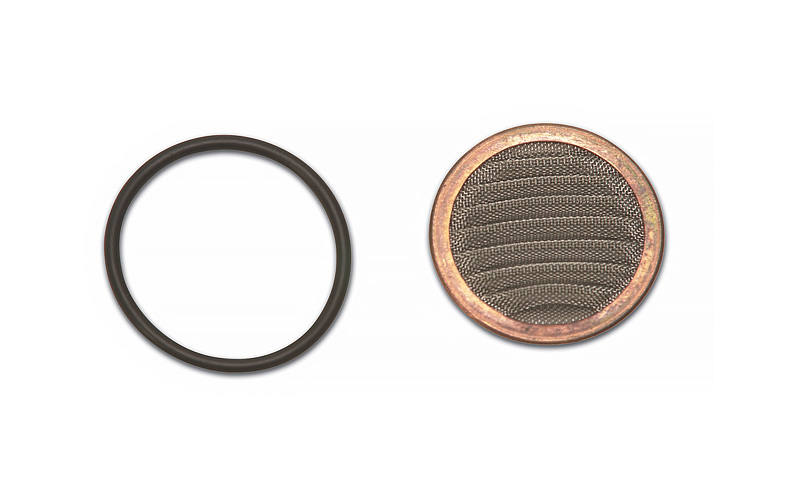

Replacement Element 651670

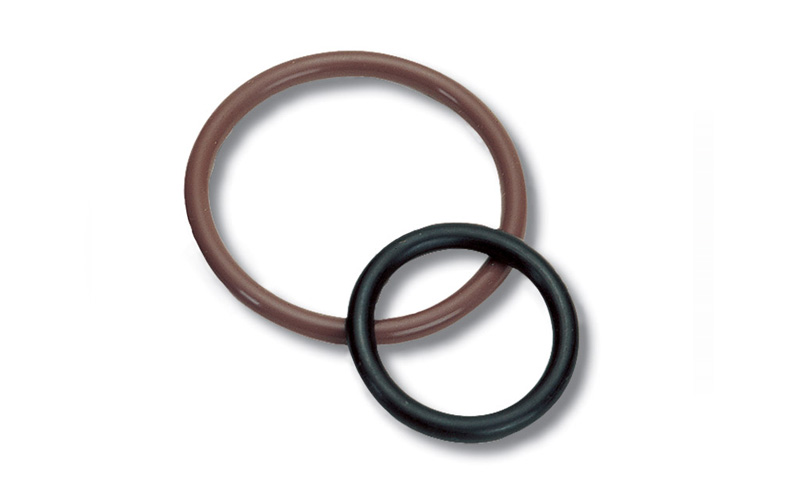

Replacement Seals 650160

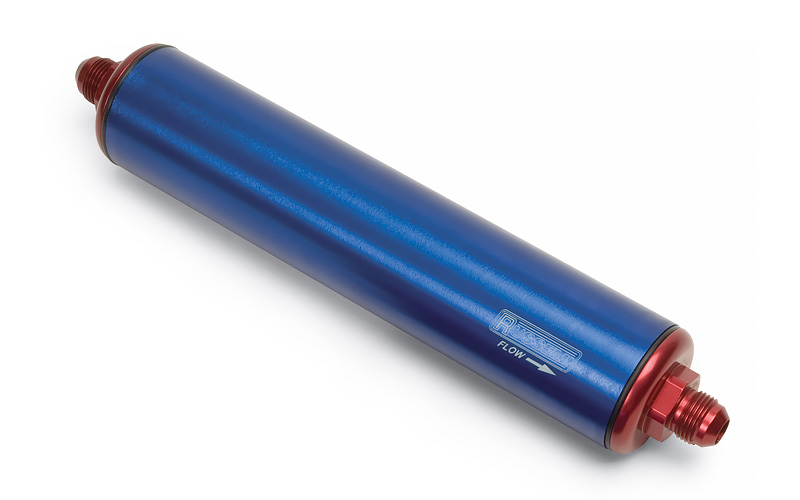

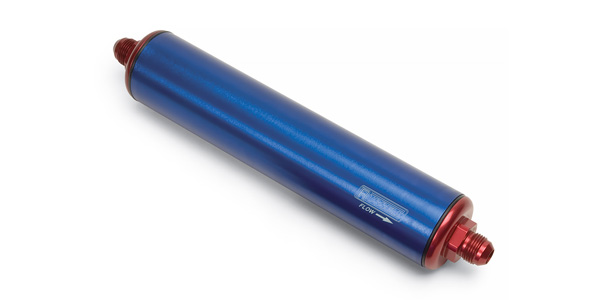

12" PROFILTERS
The Russell ProFilter is engineered to provide full flow filtration with a minimum amount of restriction. Precision machined from billet aluminum, the ProFilter end caps are removable for easy access to service the element. The replaceable element is secured with a positive O-ring seal, insuring the optimum in filtration.
12 inch ProFilters by Edelbrock
Description Inlet / outlet Element Red / Blue
Anodized Aluminum -8 AN Male Paper 649000
Anodized Aluminum -12 AN Male Paper 649110
Description Part #
Replacement Paper Element 649060
Replacement Seals 648990

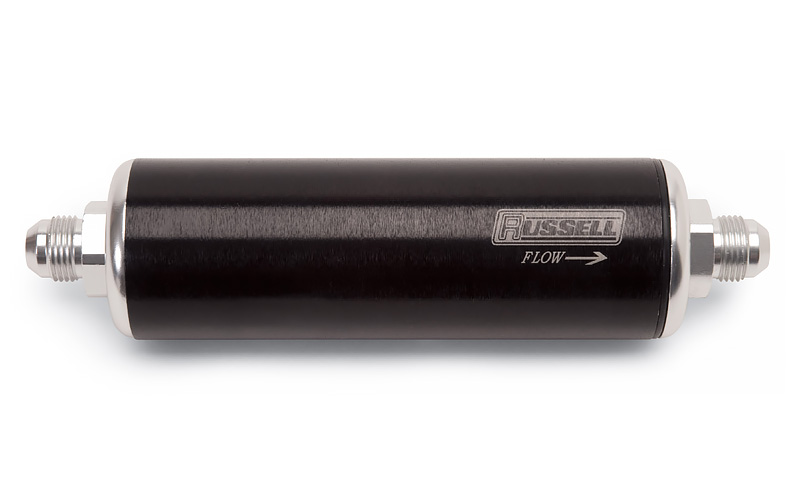

8-1/4" PROFILTERS
The Russell ProFilter is engineered to provide full flow filtration with a minimum amount of restriction. Precision machined from billet aluminum, the ProFilter end caps are removable for easy access to service the element. The replaceable element is secured with a positive O-ring seal, insuring the optimum in filtration.
8-1/4 inch ProFilters by Edelbrock
Description Inlet / outlet Element Red / Blue Black / Clear

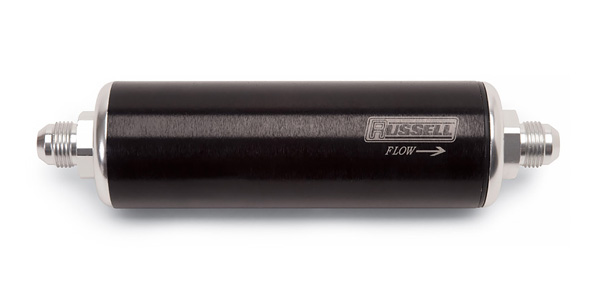

Anodized Aluminum -6 AN Male Nylon 649140 649143
Anodized Aluminum -8 AN Male Nylon 649150 649153
Anodized Aluminum -10 AN to -6 AN Male Nylon 649210 649213
Anodized Aluminum -10 AN to -8 AN Male Nylon 649190 -
Anodized Aluminum -10 AN Male Nylon 649160 -

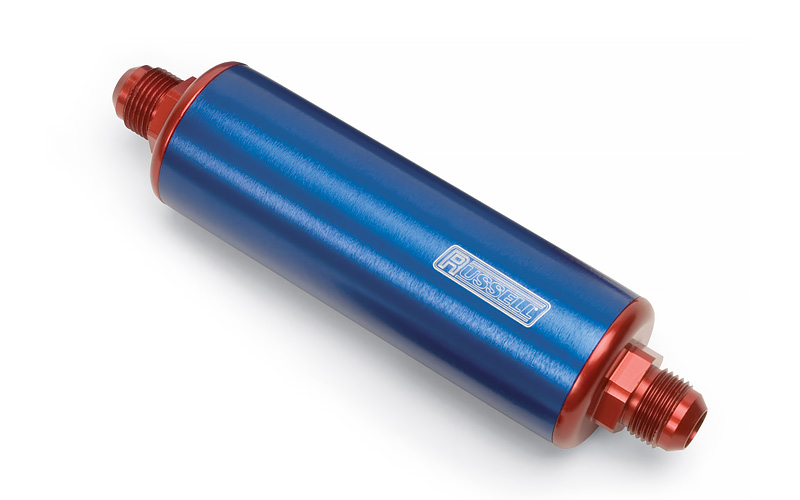

Anodized Aluminum -12 AN to -10 AN Male Nylon 649200 -
Anodized Aluminum -12 AN Male Nylon 649170 -
Description Part #

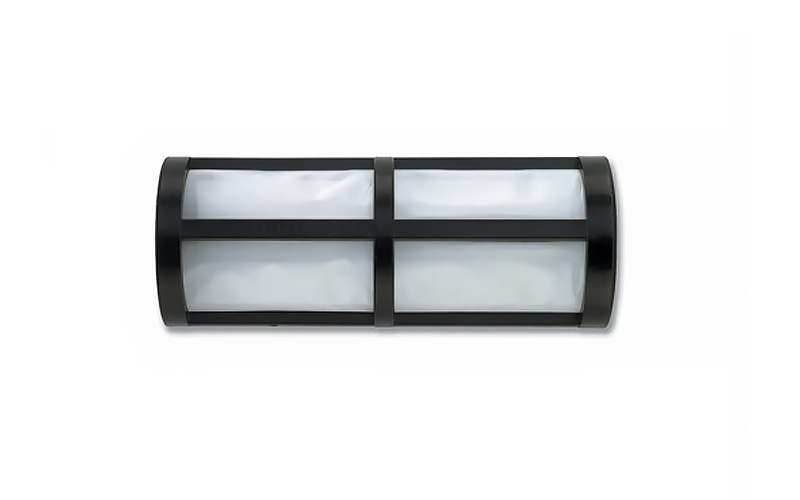

Replacement Nylon Element 649180

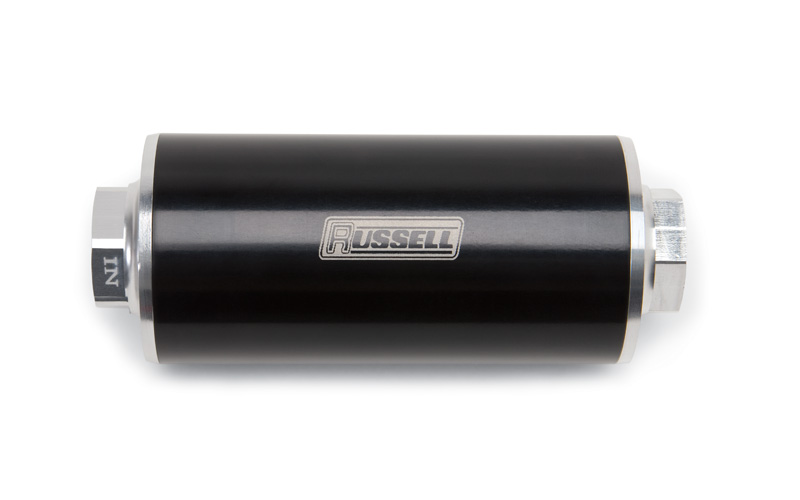

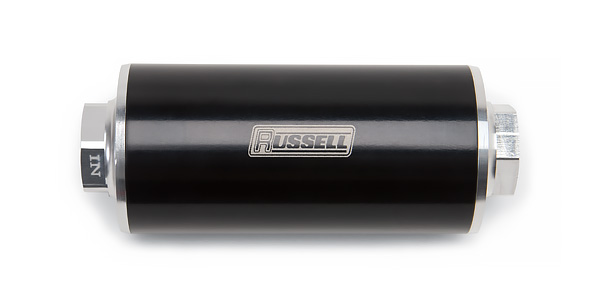

6" PROFILTERS
Machined in house from 6061-T6, our ProFilter for EFi systems utilizes an aircraft designed 10 micron pleated paper element that insures the maximum in filtration while delivering large volumes of fuel. The -10 inlet and outlet ports incorporate O-ring boss sealing technology for leak-free connections. Features a black anodized finish with silver ends for great appearance. Mounting clamp included.
6 inch ProFilters by Edelbrock
Inlet Outlet Micron Red Blue Black
-10 AN -10 AN 10 649251 649252 649250
-10 AN -10 AN 60 649261 649262 649260
Description Part #
Replacement Element 648990

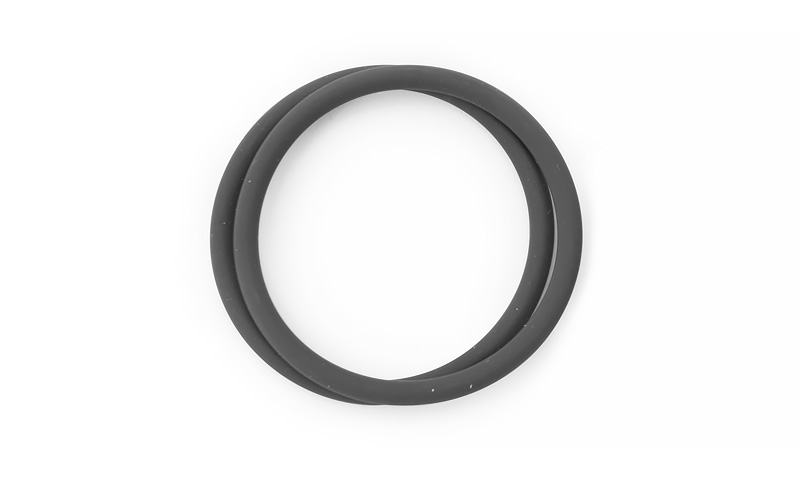

Replacement O-Ring (Qty. 2) 648980

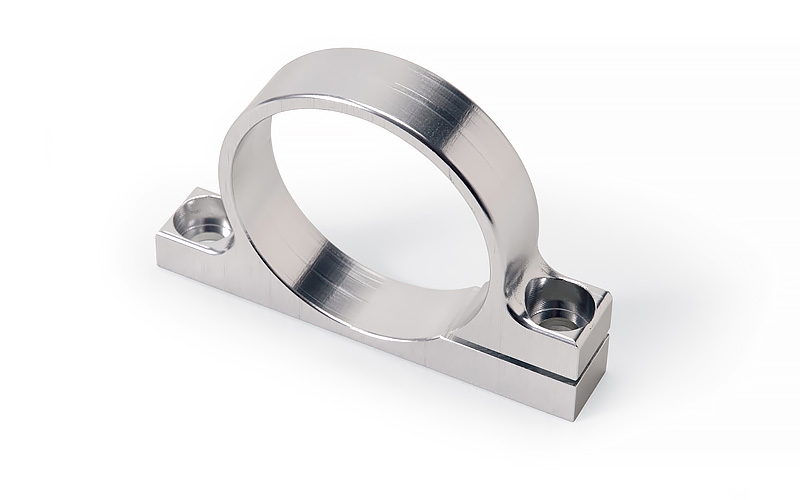

FUEL FILTER CLAMPS
Fuel Filter Clamps by Edelbrock
Description Part #

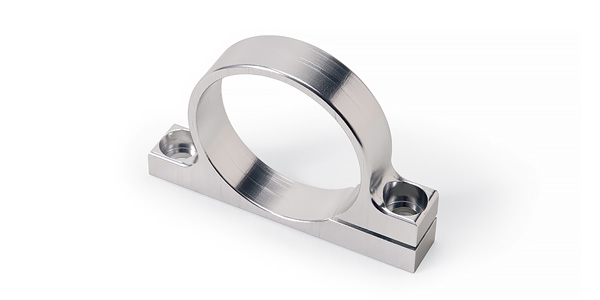

2" ID For Use with 8-1/4" and 12" ProFilters (Clear Anodized Finish) 649053
2.2" ID For Use with 6" ProFilters (Clear Anodized Finish) 49273
